In modern electronics, seamless communication between components and precise sensor integration are both critical. Two fundamental elements often encountered in circuit design are USB pinout and LDR (light dependent resistor). Understanding how these components function and how they can work together can help engineers and hobbyists alike build more efficient and versatile systems.
What is USB pinout
USB (universal serial bus) has become the global standard for device communication and power delivery. At its core, a USB pinout refers to the arrangement and function of the electrical contacts inside a USB connector. Correctly understanding USB pinouts is essential for both data transmission and powering external components such as sensors.
Here’s a basic breakdown of the most common USB 2.0 pinout:

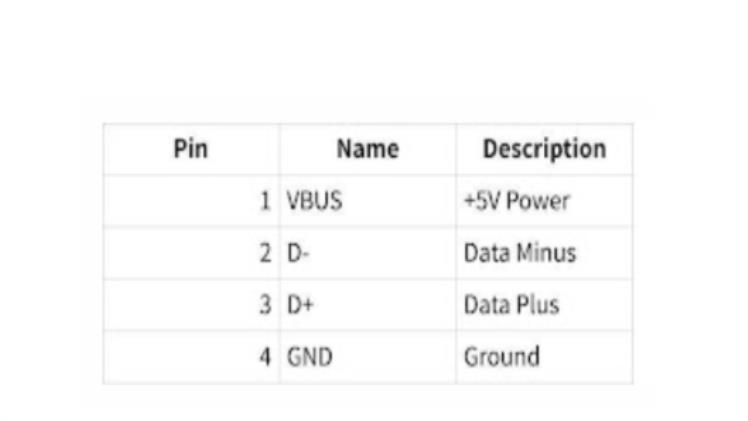

点击图片可查看完整电子表格
For newer versions like USB 3.0 and USB type-c, additional pins handle higher data rates, power delivery, and alternate modes like video output.
Why USB pinout matters
- Powering sensors: Many microcontrollers and sensor circuits, including those using LDRs, draw power directly from the 5V VBUS pin.
- Data communication: Proper data line connection (D+ and D-) ensures reliable sensor readings if USB is used for sensor data transmission.
- Safety and reliability: Incorrect wiring can lead to short circuits or data loss.
Understanding USB pinouts is essential when designing custom pcbs, USB-powered sensors, or interfacing external devices with computers or embedded systems.
What is an LDR (light dependent resistor)

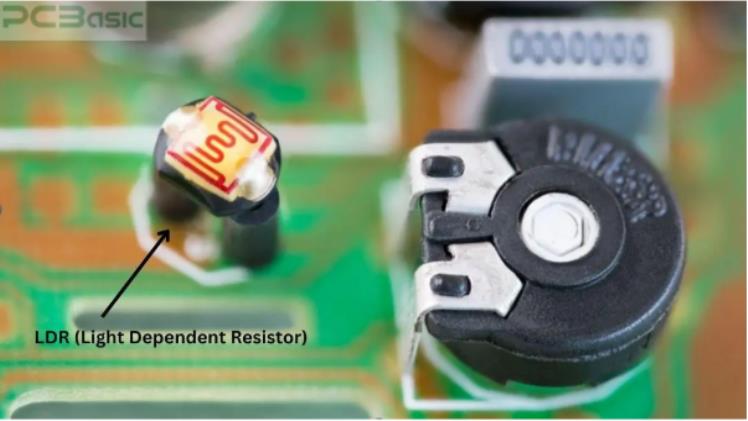

An LDR is a light-sensitive resistor whose resistance changes based on the intensity of light falling on its surface. Sometimes called a photoresistor, the LDR is widely used in applications that require light detection.
How an LDR works
- High resistance in darkness: The less light present, the higher the resistance.
- Low resistance in brightness: As light increases, resistance drops, allowing more current to flow.
This simple behavior makes LDRs extremely useful for:
- Automatic lighting systems
- Light meters
- Solar garden lights
- Ambient light sensors in displays
Integrating USB and LDR in a simple circuit
By combining the functionality of USB pinout for power and an LDR for sensing, you can easily create light-sensitive circuits without needing complex power supplies. Here’s a simple example of how they work together:
- Power source: Use the 5V and GND pins from a USB port to power your circuit.
- LDR placement: Connect the LDR in series with a fixed resistor to form a voltage divider.
- Microcontroller input: Feed the divided voltage to an analog pin on a microcontroller (such as an arduino).
- Control logic: Based on the voltage level (which reflects light intensity), program the microcontroller to turn on or off LEDs, adjust screen brightness, or trigger other devices.
Example application
Consider building a USB-powered desk lamp that automatically adjusts brightness based on ambient light:
- The USB provides constant 5V power.
- The LDR senses surrounding light levels.
- The microcontroller reads the LDR value and adjusts the lamp brightness accordingly.
Design considerations
When integrating USB pinout and LDRs into your circuit design, consider the following:
- Current limitations: Standard USB 2.0 ports typically supply up to 500mA; ensure your entire circuit stays within this limit.
- Noise protection: Use capacitors to filter power supply noise from USB, which can affect analog readings from the LDR.
- Heat dissipation: Avoid overloading the USB power source, as excess heat can damage both the host device and your circuit.
- Isolation: For sensitive designs, consider using optoisolators or USB isolators for added protection.
Conclusion
Both USB pinout and LDR components play critical roles in many modern electronics projects. Understanding how to properly configure USB connections and integrate light sensors allows designers to build smart, energy-efficient devices. Whether you’re building simple light-sensitive controls or developing more advanced embedded systems, mastering these two elements can greatly expand your design possibilities.
